Air Moving Equipment

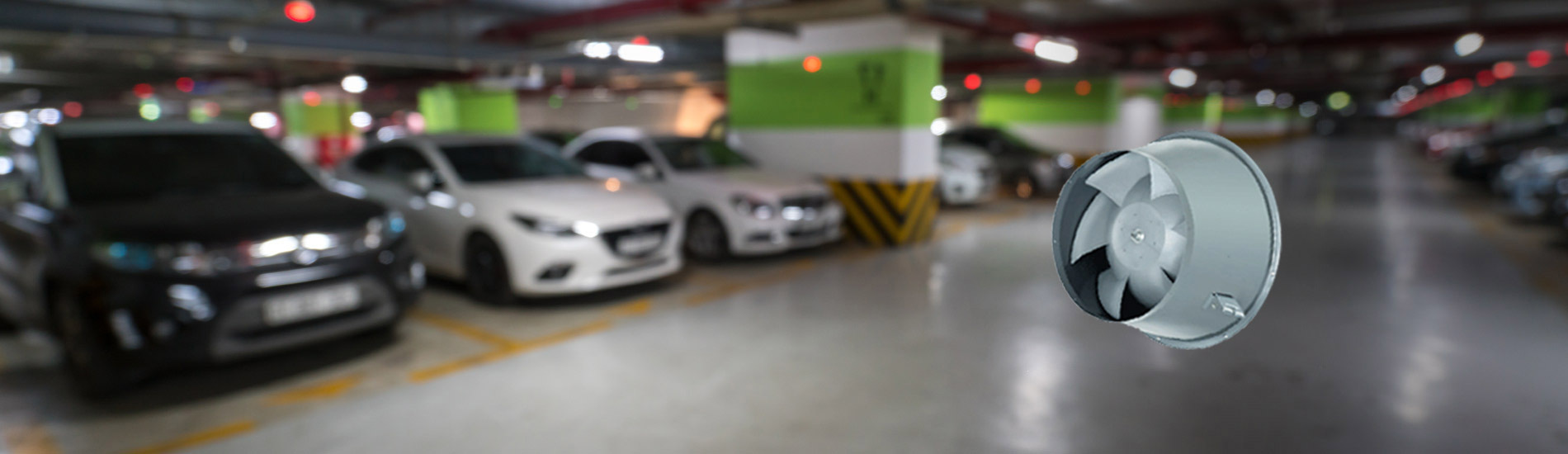

Compact Axial Flow Fan

Low Noise Design

Two speed control

Easy Installation

Wide product range

K25DSF2NET, K28DSM2NET, K35DSM2NET, K49DSL2NET, K40DSH2NET, K45DST2NET

• Single Phase
• Ceiling mounting & 2-speed selectable
• Act as ventilation system by combination use with ducts
• Long life induction motor with thermo cut-off
• High efficient axial flow fan employed for powerful airflow
• T-shape grooved clamps facilitate easy installation
• Able to be used over an ambient temperature range of from -10ºC to +40ºC

ALL SPECS

Specification 50Hz

Single Phase	Model No	Rated Voltage [V]	Number of Poles		Consumption [W]	Air Volume		Noice [db(A)]			Impeller Diameter [cm]	Weight [Kg]	Duct Size [mm]
						[CMH]	[CFM]	Side of Body	Inlet Side	Outlet Side
	K25DSF2NET	220 – 240V	4	Hi	34	600	353	41.0	51.0	50.5	25	4.7	ø 200
				Lo	27	550	324	39.5	49.0	48.5
	K28DSM2NET	220 – 240V	4	Hi	51	1,194	703	44.5	54.5	54.0	28	8.5	ø 250
				Lo	55	1,050	618	42.0	52.0	51.5
	K35DSM2NET	220 – 240V	4	Hi	95	2,016	1,187	45.5	56.5	56.0	35	13.0	ø 300
				Lo	87	1,782	1,049	43.0	54.0	53.5
	K40DSL2NET	220 – 240V	4	Hi	204	3,228	1,900	56.0	68.0	67.5	40	20.0	ø 350
				Lo	194	3,084	1,815	54.0	66.0	65.5
	K40DSH2NET	220 – 240V	4	Hi	256	3,504	2,062	55.5	67.5	67.0	40	22.0	ø 350
				Lo	233	3,444	2,027	53.5	65.5	65.0
	K45DST2NET	220 – 240V	4	Hi	428	4,968	2,924	59.5	69.5	69.5	45	37.0	ø 400
				Lo	398	4,206	2,476	58.0	68.0	68.0

Specification 60Hz

Single Phase	Model No	Rated Voltage [V]	Number of Poles		Consumption [W]	Air Volume		Noice [db(A)]			Impeller Diameter [cm]	Weight [Kg]	Duct Size [mm]
						[CMH]	[CFM]	Side of Body	Inlet Side	Outlet Side
	K25DSF2NET	220 – 240V	4	Hi	38	720	424	42.0	54.0	53.5	25	4.7	ø 200
				Lo	29	650	383	41.5	52.0	51.5
	K28DSM2NET	220 – 240V	4	Hi	62	1,224	720	45.5	55.5	55.0	28	8.5	ø 250
				Lo	61	1,062	625	43.0	53.0	52.5
	K35DSM2NET	220 – 240V	4	Hi	131	2,154	1,268	46.5	57.5	57.0	35	13.0	ø 300
				Lo	113	1,830	1,077	44.0	55.0	54.5
	K40DSL2NET	220 – 240V	4	Hi	281	3,528	2,077	56.5	68.5	68.0	40	20.0	ø 350
				Lo	245	3,186	1,875	54.5	66.5	66.0
	K40DSH2NET	220 – 240V	4	Hi	401	4,128	2,430	56.5	68.5	68.0	40	22.0	ø 350
				Lo	348	3,822	2,250	54.5	66.5	66.0
	K45DST2NET	220 – 240V	4	Hi	643	5,940	3,496	61.0	71.0	71.0	45	37.0	ø 400
				Lo	615	5,790	3,408	60.5	70.5	70.5

Note: In above table, the values are tested 230V for Single-phase Models, and 380V for Three-phase Models

1. The values of air volume are measured at 0 static pressure (Pa) by the chamber method.

2. The values of Current and Input are in the free load condition.

3. The values of noise level are measured at 0 static pressure (Pa) and at the following positions
(When ducts are connected on both inlet and outlet side.)
Side of fan body : 1.5m apart from the fan body (excluding the noise of outlet side)
inlet side : 1.5m apart from the inlet of the fan (excluding the noise of outlet side)
Outlet side : 1.5m angle 45˚ apart from outlet side (excluding the noise of inlet side)
Add 2dB to the values above for the noise levels apart from 1.0m.

4. Specifications above indicate the values under the condition of normal temperature (20 degrees Celsius).

Use condition:

Use in the following conditions
Handing air and Ambient air: -10 to +40 deg C, relative humidity 85% or less

Do not use the product in the places such as outdoor (where rain water
splashes), where water splashes, steam is always generated, corrosive gas
may be generated, or chemicals may be used.

Do not use the product in the places such as pools or hot springs where the
chemicals such as chlorine are used. It has high possibility to cause corrosion
in a short term.

Operation Manual

K40DTL2BET, K40DTH2BET, K45DTT2BET, K45DTH2BET

• Three Phase
• Ceiling mounting & 2-speed selectable
• Act as ventilation system by combination use with ducts
• Long life induction motor with thermo cut-off
• High efficient axial flow fan employed for powerful airflow
• T-shape grooved clamps facilitate easy installation
• Able to be used over an ambient temperature range of from -10ºC to +40ºC

ALL SPECS

Specification 50Hz

Three Phase	Model No	Rated Voltage [V]	Number of Poles		Consumption [W]	Air Volume		Noice [db(A)]			Impeller Diameter [cm]	Weight [Kg]	Duct Size [mm]
						[CMH]	[CFM]	Side of Body	Inlet Side	Outlet Side
	K40DTL2BET	380V	4	Hi	241	3,396	1,999	56.0	68.0	67.5	40	18.0	ø 350
				Lo	237	3,330	1,960	54.0	66.0	65.5
	K40DTH2BET	380V	4	Hi	250	3,426	2,016	56.0	68.0	67.5	40	19.0	ø 350
				Lo	220	3,264	1,921	55.0	67.0	66.5
	K45DTT2BET	380V	4	Hi	421	5,004	2,945	61.0	71.0	71.0	45	36.0	ø 400
				Lo	397	4,860	2,860	60.5	70.5	70.5
	K45DTH2BET	380V	4	Hi	511	5,454	3,210	59.0	68.5	68.5	45	37.0	ø 400
				Lo	482	5,250	3,090	58.5	68.0	68.0

Specification 60Hz

Three Phase	Model No	Rated Voltage [V]	Number of Poles		Consumption [W]	Air Volume		Noice [db(A)]			Impeller Diameter [cm]	Weight [Kg]	Duct Size [mm]
						[CMH]	[CFM]	Side of Body	Inlet Side	Outlet Side
	K40DTL2BET	380V	4	Hi	381	3,840	2,260	56.0	68.0	67.5	40	18.0	ø 350
				Lo	334	3,660	2,154	54.0	66.0	65.5
	K40DTH2BET	380V	4	Hi	372	3,912	2,303	57.0	69.0	68.5	40	19.0	ø 350
				Lo	331	3,666	2,158	56.0	68.0	67.5
	K45DTT2BET	380V	4	Hi	638	6,000	3,531	63.0	73.0	73.0	45	36.0	ø 400
				Lo	614	5,886	3,464	62.5	72.5	72.5
	K45DTH2BET	380V	4	Hi	758	6,522	3,839	65.0	72.5	72.5	45	37.0	ø 400
				Lo	730	5,789	3,407	64.5	72.0	72.0

Note: In above table, the values are tested 230V for Single-phase Models, and 380V for Three-phase Models

1. The values of air volume are measured at 0 static pressure (Pa) by the chamber method.

2. The values of Current and Input are in the free load condition.

4. Specifications above indicate the values under the condition of normal temperature (20 degrees Celsius).

Use condition:

Use in the following conditions
Handing air and Ambient air: -10 to +40 deg C, relative humidity 85% or less

Do not use the product in the places such as outdoor (where rain water
splashes), where water splashes, steam is always generated, corrosive gas
may be generated, or chemicals may be used.

Do not use the product in the places such as pools or hot springs where the
chemicals such as chlorine are used. It has high possibility to cause corrosion
in a short term.

Operation Manual

Compact Axial Flow Fan

Compact Axial Flow Fan

K25DSF2NET, K28DSM2NET, K35DSM2NET, K49DSL2NET, K40DSH2NET, K45DST2NET

K40DTL2BET, K40DTH2BET, K45DTT2BET, K45DTH2BET

Recently Viewed Products

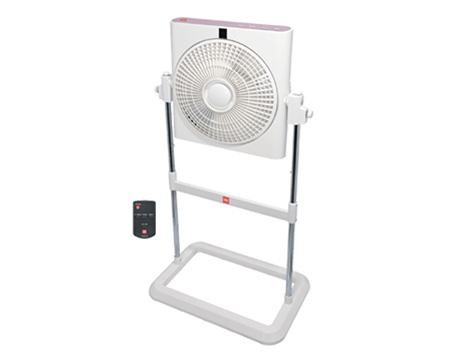

SC30X
