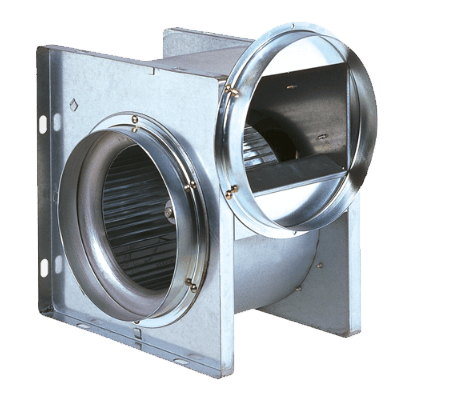

Mini Sirocco Fan

Powerful airflow with low operation noice

K10CG1/K12CG1/K14CG1/K16CG1/K17CG1/ K19CG1/K21CG1/K23CG1

• Single Phase
• Long-life induction motor with thermo cut-off
• Highly efficient Sirocco fan employed for powerful airflow
• Outlet direction is adjustable to vertical or horizontal position
• Compact size
• Two speed selectable (K10CG1, K12CG1, K14CG1)

ALL SPECS

Specification 50Hz

Single Phase	Model No	Hz		Consumption [W]	RPM [min]	Air Volume		Noice [db(A)]			Weight [Kg]	Duct Size [mm]	Impeller Diameter [cm]
	Model No	Hz		Consumption [W]	RPM [min]	[CMH]	[CMF]	Casing Side	Suction Side	Discharge Side	Weight [Kg]	Duct Size [mm]	Impeller Diameter [cm]
	K10CGI	50	–	11	980	144	85	32	38	38	3.1	ø 100	10
	K12CGI		–	21	760	258	152	34	39	39	3.6	ø 150	12
	K14CGI		–	30	930	308	181	39	44.5	44.5	3.8	ø 150	12
	K16CGI		Hi	49	1,080	495	291	43.5	50	50	5.3	ø 150	15
	K16CGI		Lo	41	875	365	215	38	44.5	44.5	5.3	ø 150	15
	K17CGI		Hi	87	920	763	449	46	51	51	8.8	ø 200	18
	K17CGI		Lo	74	815	640	377	42.5	47	47	8.8	ø 200	18
	K19CGI		Hi	117	1,110	947	557	50.5	55.5	55.5	9.4	ø 200	18
	K19CGI		Lo	109	1,030	821	483	49	54	54	9.4	ø 200	18
	K21CGI		Hi	240	1,325	1420	836	57	61	61	15	ø 200	20
	K21CGI		Lo	220	1,230	1260	742	56	59.5	59.5	15	ø 200	20

Specification 60Hz

Single Phase	Model No	Hz		Consumption [W]	RPM [min]	Air Volume		Noice [db(A)]			Weight [Kg]	Duct Size [mm]	Impeller Diameter [cm]
	Model No	Hz		Consumption [W]	RPM [min]	[CMH]	[CMF]	Casing Side	Suction Side	Discharge Side	Weight [Kg]	Duct Size [mm]	Impeller Diameter [cm]
	K10CGI	60	–	13	970	143	84	32	38	38	3.1	ø 100	10
	K12CGI		–	22	725	242	142	32	38	38	3.6	ø 150	12
	K14CGI		–	40	870	284	167	36	41.5	41.5	3.8	ø 150	12
	K16CGI		Hi	59	1,060	470	277	42.5	49	49	5.3	ø 150	15
	K16CGI		Lo	40	805	335	197	36	42.5	42.5	5.3	ø 150	15
	K17CGI		Hi	95	850	722	425	44.5	49	49	8.8	ø 200	18
	K17CGI		Lo	79	730	593	349	40	45	45	8.8	ø 200	18
	K19CGI		Hi	143	1,100	931	548	50	55	55	9.4	ø 200	18
	K19CGI		Lo	127	985	791	466	48	53	53	9.4	ø 200	18
	K21CGI		Hi	340	1,430	1,540	906	59	63	63	15	ø 200	20
	K21CGI		Lo	300	1,130	1,230	724	54	58.5	58.5	15	ø 200	20

Note: In above table, the values are tested 230V for Single-phase Models, and 380V for Three-phase Models

1. Power consumption is expressed as open value.

2. Air volume is measured using the Chamber method (JIS B 8330 or JIS C 9603) at 0 Pa static pressure.

3. Noise Suction side – Noise at 1.5m at suction side, Casting side – Noise at 1.5m on the side of a machine body, Discharge side – Noise at 1.5m orthogonally at discharge side.

Use condition:

1. Power consumption is expressed as open value.

Don’t use it for ventilation at a site generating heat, oily smoke and/or moisture. (Environmental condition : -10 deg C~+40 deg C, relative humidity below 85%)

Install a door 600x600mm or more for maintenance purpose.

Install a leak breaker or a motor breaker on the source site. A control panel such as a contact switch relay is required for three phase power source.

In cold air supply to indoor during winter and at any other occasion susceptible to dew drop, heat insulation is required.

It is recommended to use a commercially available filter at the suction side to avoid dust and/or waste attachment on a blade.

Install it on a horizontal direction.

Do not perform parallel operation of more than one unit on a switch, for it may result in motor failure.

Operation Manual

K21CT1

• Three Phase
• Long-life induction motor with thermo cut-off
• Highly efficient Sirocco fan employed for powerful airflow
• Outlet direction is adjustable to vertical or horizontal position
• Compact size

ALL SPECS

Specification 50Hz

Three Phase	Model No	Hz		Consumption [W]	RPM [min]	Air Volume		Noice [db(A)]			Weight [Kg]	Duct Size [mm]	Impeller Diameter [cm]
						[CMH]	[CMF]	Casing Side	Suction Side	Discharge Side
	K21CTI	50	Hi	253	1,355	1,450	853	57.5	61.5	61.5	14.5	ø 200	20
			Lo	177	1,070	1,090	642	51.5	55.5	55.5

Specification 60Hz

Three Phase	Model No	Hz		Consumption [W]	RPM [min]	Air Volume		Noice [db(A)]			Weight [Kg]	Duct Size [mm]	Impeller Diameter [cm]
						[CMH]	[CMF]	Casing Side	Suction Side	Discharge Side
	K21CTI	50	Hi	370	1,485	1,590	936	59.5	63.5	63.5	14.5	ø 200	20
			Lo	228	1,030	1,020	600	50	54	54

Note: In above table, the values are tested 230V for Single-phase Models, and 380V for Three-phase Models

1. Power consumption is expressed as open value.

2. Air volume is measured using the Chamber method (JIS B 8330 or JIS C 9603) at 0 Pa static pressure.

3. Noise Suction side – Noise at 1.5m at suction side, Casting side – Noise at 1.5m on the side of a machine body, Discharge side – Noise at 1.5m orthogonally at discharge side.

Use condition:

1. Power consumption is expressed as open value.

Don’t use it for ventilation at a site generating heat, oily smoke and/or moisture. (Environmental condition : -10 deg C~+40 deg C, relative humidity below 85%)

Install a door 600x600mm or more for maintenance purpose.

Install a leak breaker or a motor breaker on the source site. A control panel such as a contact switch relay is required for three phase power source.

In cold air supply to indoor during winter and at any other occasion susceptible to dew drop, heat insulation is required.

It is recommended to use a commercially available filter at the suction side to avoid dust and/or waste attachment on a blade.

Install it on a horizontal direction.

Do not perform parallel operation of more than one unit on a switch, for it may result in motor failure.

Operation Manual
