EFFICIENT BARRIER EFFECT

Hybrid Cross Flow Fan is adopted that airflow distribution is wide and uniform within the air stream while the air volume output can be maintained with low noise level.

Unique Auxiliary Air Inlet allows more air intake at lower front that enhances airflow output.

EASY MAINTENANCE

The Cross Flow Fan can generate air current between the fan and front cover forming movement of dust that reduces accumulation of dust on the fan blade.

Simple structure allows convenient cleaning of the fan just detach the front cover and metal plate to clean product interior

CONTEMPORARY DESIGN

Modern and streamline outlook fits the décor of interior perfectly. Also, the main air inlet locates at top of the product allowing a neat and clean image.

Product Comparison

Model No.		Voltage		Air Volume				Consumption [W]		Current [A]		Outlet Velocity [m/s]		Noise [dB(A)]		Weight [kg]
		Voltage		Hi		Lo		Consumption [W]		Current [A]		Outlet Velocity [m/s]		Noise [dB(A)]
		[V]	[Hz]	[m3/h]	[CFM]	[m3/h]	[CFM]	Hi	Lo	Hi	Lo	Hi	Lo	Hi	Lo
900mm	3009GA	220V	50	1,100	647	920	541	76	70	0.35	0.32	10.5	8.5	48.5	45	12.5
		220V	60	1,100	647	900	530	92	78	0.42	0.36	10.5	8.5	49.5	45
		240V	50	1,150	677	960	565	86	80	0.37	0.35	10.5	9	50.5	47.5
	4009GA	220V	50	1,340	789	1,190	700	110	94	0.50	0.43	12	10	54.5	51	13.5
		220V	60	1,340	789	1,100	647	141	111	0.64	0.51	12	10	55.5	51
		240V	50	1,360	800	1,200	706	122	100	0.51	0.43	12.5	10.5	56.5	53.5
1200mm	3012GA	220V	50	1,400	824	1,270	747	94	85	0.43	0.40	9.5	8	48.5	44.5	15
		220V	60	1,400	824	1,250	736	109	94	0.51	0.46	9.5	8	48.5	44.5
		240V	50	1,500	883	1,320	777	107	95	0.46	0.43	10	8.5	50.5	47
	4012GA	220V	50	1,700	1,001	1,530	901	126	105	0.59	0.49	12	10	52.5	48.5	16
		220V	60	1,700	1,001	1,450	853	153	118	0.70	0.55	12	10	52.5	48.5
		240V	50	1,800	1,059	1,580	930	139	110	0.60	0.49	12.5	10.5	54.5	51
1500mm	3015GA	220V	50	2,000	1,177	1,800	1,059	131	110	0.59	0.50	10.5	9.5	51.5	48	18.5
		220V	60	2,000	1,177	1,750	1,030	150	118	0.68	0.54	10.5	9.5	51.5	48
		240V	50	2,100	1,236	1,850	1,089	145	115	0.60	0.50	11	10	53.5	50.5
	4015GA	220V	50	2,450	1,442	2,000	1,177	177	147	0.81	0.68	13	10	56	52	18.5
		220V	60	2,300	1,354	1,780	1,048	220	160	1.01	0.74	13	9.5	56	52
		240V	50	2,500	1,471	2,050	1,207	200	160	0.86	0.68	13.5	10.5	58	54.5

Model No.		Voltage		Air Volume				Consumption [W]		Current [A]		Outlet Velocity [m/s]		Noise [dB(A)]		Weight [kg]
		Voltage		Hi		Lo		Consumption [W]		Current [A]		Outlet Velocity [m/s]		Noise [dB(A)]
		[V]	[Hz]	[m3/h]	[CFM]	[m3/h]	[CFM]	Hi	Lo	Hi	Lo	Hi	Lo	Hi	Lo
900mm	3009UA	220V	50	1,100	647	920	541	76	70	0.35	0.32	10.5	8.5	48.5	45	12.5
		220V	60	1,100	647	900	530	92	78	0.42	0.36	10.5	8.5	49.5	45
		240V	50	1,150	677	960	565	86	80	0.37	0.35	10.5	9	50.5	47.5
	4009UA	220V	50	1,340	789	1,190	700	110	94	0.50	0.43	12	10	54.5	51	13.5
		220V	60	1,340	789	1,100	647	141	111	0.64	0.51	12	10	55.5	51
		240V	50	1,360	800	1,200	706	122	100	0.51	0.43	12.5	10.5	56.5	53.5
1200mm	3012UA	220V	50	1,400	824	1,270	747	94	85	0.43	0.40	9.5	8	48.5	44.5	15
		220V	60	1,400	824	1,250	736	109	94	0.51	0.46	9.5	8	48.5	44.5
		240V	50	1,500	883	1,320	777	107	95	0.46	0.43	10	8.5	50.5	47
	4012UA	220V	50	1,700	1,001	1,530	901	126	105	0.59	0.49	12	10	52.5	48.5	16
		220V	60	1,700	1,001	1,450	853	153	118	0.70	0.55	12	10	52.5	48.5
		240V	50	1,800	1,059	1,580	930	139	110	0.60	0.49	12.5	10.5	54.5	51
1500mm	3015UA	220V	50	2,000	1,177	1,800	1,059	131	110	0.59	0.50	10.5	9.5	51.5	48	18.5
		220V	60	2,000	1,177	1,750	1,030	150	118	0.68	0.54	10.5	9.5	51.5	48
		240V	50	2,100	1,236	1,850	1,089	145	115	0.60	0.50	11	10	53.5	50.5
	4015UA	220V	50	2,450	1,442	2,000	1,177	177	147	0.81	0.68	13	10	56	52	18.5
		220V	60	2,300	1,354	1,780	1,048	220	160	1.01	0.74	13	9.5	56	52
		240V	50	2,500	1,471	2,050	1,207	200	160	0.86	0.68	13.5	10.5	58	54.5

Air Curtain – New Hybrid Blade Series

Air Curtain

Hybrid Crossflow Fan Series

EFFICIENT BARRIER EFFECT

EASY MAINTENANCE

CONTEMPORARY DESIGN

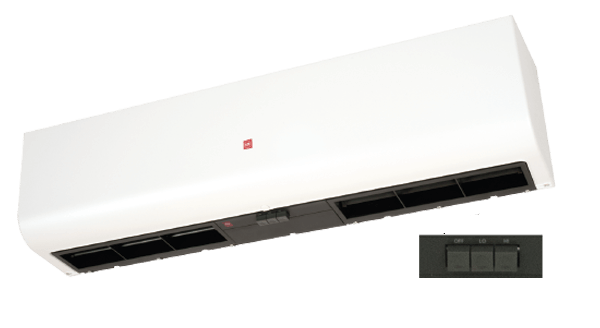

Standard Series
